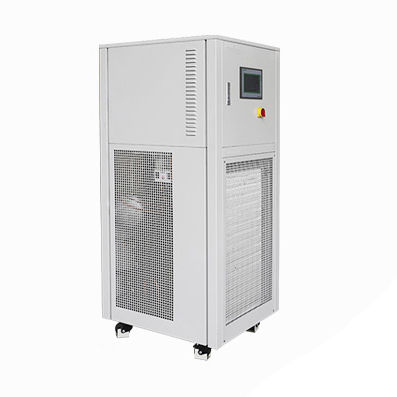

Hermetische Kondensationsanlage Small Gas Condensing System HQ

gasgekühlt

ModelHQ-0540HQ-1040HQ-2540HQ-5040HQ-0575WHQ-1075WHQ-2575WHQ-5075W Gas fließen5m3/h10m3/h25m3/h50m3/h5m3/h10m3/h25m3/h50m3/h Niedrigste temperatur-40℃-40℃-40℃-40℃-75℃-75℃-75℃-75℃ Ursprüngliche temperaturThere is no-20℃-20℃-20℃-20℃ Cold box under pressure0～25bar0～25bar0～25bar0～25bar0～25bar0～25bar0～25bar0～25bar Wärmeübertragung0.8m21.5m23m25m20.8m2*21.5m2*23m2*25m2*2 Wärmetauscher materialienThe standard configuration is copper tube, which can be selected with SUS304\SUS316L. Kälte leistung0.8kw1.5kw3kw5kw0.8kw1.5kw3kw5kw kühlungAir coolingWater cooled Der lufteinlassM16*1M24*1.5M38*1.5DN50M16*1M24*1.5M38*1.5DN50 PN25 Erholung tank2L3L10L15L2L3L10L15L Interface größeM16*1M24*1.5M24*1.5M24*1.5M16*1M24*1.5M24*1.5M24*1.5 Control SystemSiemens S7 series PLC and module. Control panel7 inch color touch screen, record curve temperature and alarm. KompressorThe French taikang/Emerson valley wheel/Italy is a compressor. Netz spannung220V 50HZ220V 50HZ380V 50HZ380V 50HZ220V 50HZ220V 50HZ380V 50HZ380V 50HZ 1.2KW1.8KW3.5KW6.6KW2KW2.5KW6KW10KW
