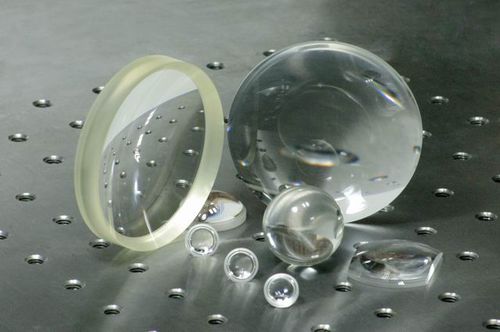

Sphärische Linse DBT series

Doppeloptisches GlasAchromatisch

Achromatic Lenses are used to minimize or eliminate chromatic aberration. The achromatic design also helps minimize spherical aberrations. Achromatic Lenses are ideal for a range of applications, including fluorescence microscopy, image relay, inspection, or spectroscopy. An Achromatic Lens, which is often designed by either cementing two elements together or mounting the two elements in a housing, creates smaller spot sizes than comparable singlet lenses. Spezifikationen: Material Optisches Glas Designwellenlänge 480, 546.1, 643.8nm Größen-Toleranz +0/-0.2mm Dickentoleranz ±0.2mm Oberflächenqualität 60/40 scratch and dig Power(fringe@633nm) 3 Irregularity(fringe@633nm) 0.5 Zentrierung 90% Fase <0.5mmx45deg Beschichtung MgF2 Antireflexionsbeschichtung @550nm
