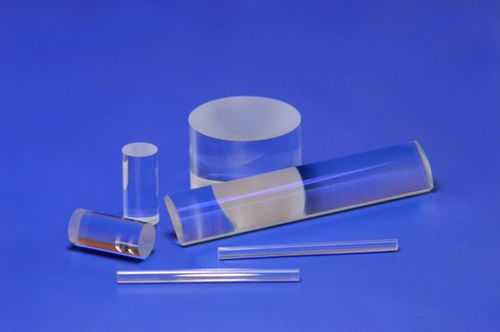

Zylindrische Linse

plankonkavbikonkavkonvex

Cylindrical lenses are designed for applications requiring one-dimensional shaping of a light source. Normally with plano concave or plano convex configurations, which are meant to expand or focus light, respectively. Choose from N-BK7 glass, UV fused silica, all of which are available uncoated or with an antireflection coating. We also offer round versions cylindrical lenses. Spezifikationen: Material BK7 Designwellenlänge 632.8nm Größen-Toleranz +0/-0.2mm Dickentoleranz ±0.2mm Oberflächenqualität 60/40 scratch and dig Power(fringe@633nm) 3 Irregularity(fringe@633nm) 0.5 Zentrierung 90% Fase <0.5mmx45deg
