Abgasabsauger für PKW ST-One FAN

für Werkstattwandmontiertmit Schlauchaufroller

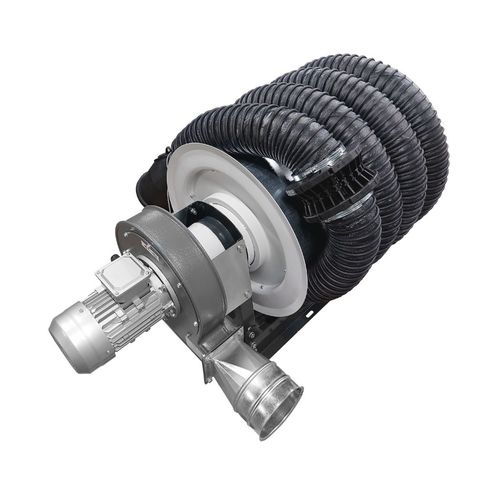

The Stucchi 1950 ST-One hose reels with fan for exhaust gas extraction are designed for use in motorcycle and car workshops. These hose reel models are equipped with a centrifugal fan connected directly to the structure, an ideal solution for autonomous suction units. The three-phase fans (400 v / 50 Hz) are sized for use according to the diameter and length of the hose; on request, 230 V / 50 Hz single-phase fan are available. Despite the presence of the fan, the dimensions of the reel are contained, allowing to reduce the overall dimensions to a minimum and also facilitating transport and assembly. The recovery mechanism is spring-loaded (-CV) and this version is also equipped with a neoprene hose (max. 180 °). Versions available (reel diameter - hose length): - ST-One ø 75 - L. 7.5 m. CV - ST-One ø 75 - L. 10 m. CV - ST-One ø 100 - L. 7.5 m. CV
