Pneumatischer Werkzeugwechsler

für Roboterautomatischmanuell

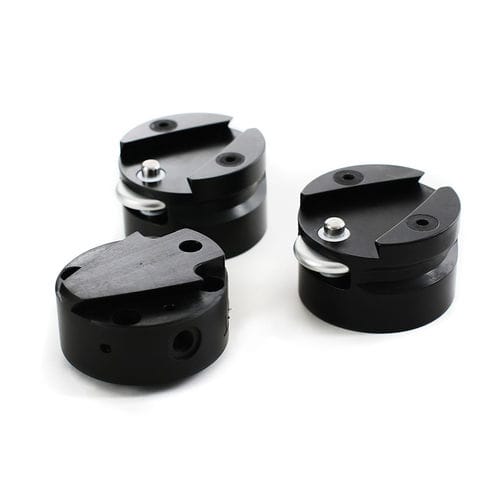

Manual pneumatic clutch set For applications where mechanical and pneumatical connection is needed, the manual tool changer is a good option. Product Features and Specifications Fast Works at high speed and precision Accurate With the range of five hundredth of a millimeter in all directions and angles Ease of use Easy to deploy and redeploy with smart mechanical design UR cap available Easy installation and hereby high security Handling payload 50 kg Connection Pneumatic 2xG 1/8″ Weight total 150g MANUAL PNEUMATIC CLUTCH The pneumatic clutch is a good introduction to the SMARTSHIFT products, as it permits all the possible connections. The manual pneumatic clutch is ready for easy mounting and tool changing in all applications, where you need pneumatic connection.This solution provides the option for electrical connection and for future upgrade to an automatic solution where tool pocket is possible. The pneumatic clutch consists of one robot master and two tool holders.
