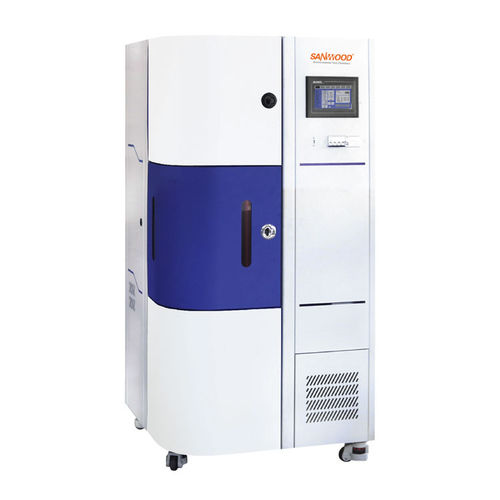

Alterungs-Prüfkammer SM-B-SUN

für die Fahrzeugindustriefür Epoxidpolymerbeschichtungenauf Rollen

Xenon lamp weathering test chamber Characters ◆Xenon test chamber have Three xenon lamps imported from America can offer higer irradiance energy, meet with all test strandards’ requirements. ◆ Can set and control automatically the relative humidity of working room. ◆ The test procedures can be programmed freely; and up to 16 predetermined procedures can be saved in one time. Every procedure includes up to 10 segments setting data. ◆ Can set the cumulative energy （total irradiance energy）obtained by sample to finish a test procedure. ◆ With spray function, can set spray time and spray interval time. ◆ Irradiance energy can be accurately controlled. The "Sun Eye" control system can automatically compensate the change of light intensity caused by ageing or other factors. ◆ Users can easily calibrate and adjust the irradiance or the blackboard temperature by themselves. ◆ With High precision Pt100 Temperature sensor. Blackboard temperature is auto-controlled during the whole process ◆ Over temperature, over heating load,big error for irradiance, auto shut-down protection when opening door. ◆ Touch screen and user-friendly operation interface allow operator to set the test parameters and monitor all the test process easily. ◆ Specimen mounting and evaluation is fast and easy With unique slide-out specimen tray ◆ Real-time data can be collected and recorded. The incidental USB connector allow users to copy the test data into a USB drive, achieving unattended operation.
