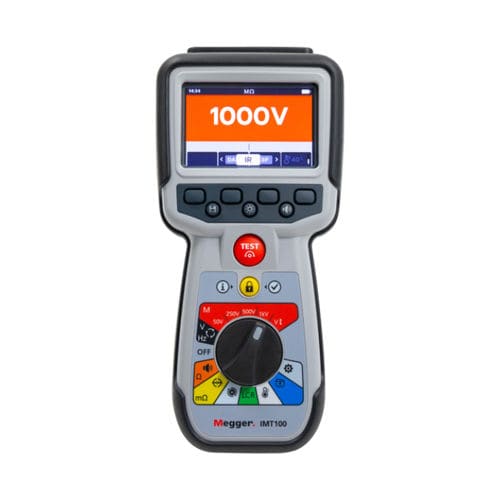

Multifunktionstester IMT100

SpannungIsolationDurchgang

Ein vielseitiges tragbares Multiprüfgerät mit mehr als 13 verschiedenen Prüffunktionen Ein spezielles Gerät zur Prüfung von Widerstand, Durchgang und Isolationswiderstand in Systemen, das die Methoden der zwei-, drei- und vierpoligen Prüfung kombiniert The IMT100 industrial multi-tester is a versatile instrument with a complete suite of insulation and low resistance testing capabilities, plus continuity, inductance, capacitance, voltage, and temperature measurements. Additionally, the instrument can test insulation resistance from 100 Ω up to 200 GΩ, with test voltages of 50 V, 250 V, 500 V, 1 kV, and selectable variable voltage. The instrument includes a guard terminal, and supports several diagnostic insulation resistance functions including spot reading, polarisation index ratio, and timed insulation testing. The IMT100 comes with a unique four-wire digital low resistance function that includes a stable power supply that can deliver 200 mA in long circuits with a resistance range from 1 mΩ up to 10 Ω. This unit offers different test modes selectable through a soft keypad, including bidirectional, unidirectional, automatic, and continuous. The rotary switch and soft keypads are easy to operate, with or without gloved hands, and the instrument’s full colour graphic display makes it easy to select functions and take readings. The unit also has a supplied thermocouple (CAT III to 600 V) that enables you to test temperature and insulation resistance compensation. What’s more, the LRC function allows the IMT100 to automatically determine if the main element of the load is inductive, capacitive, or resistive, and displays the result on screen.
