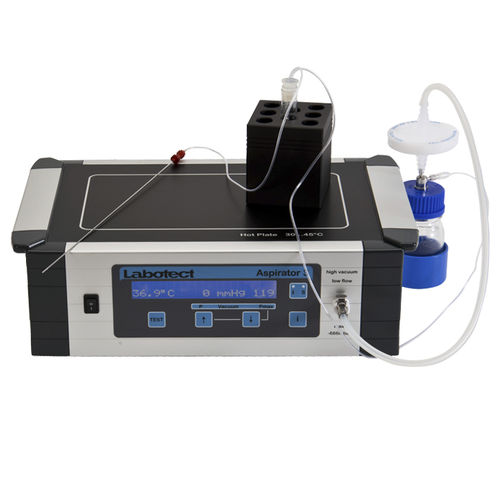

Wasserpumpe Aspirator 3

Pedalfür die Medizintechnikfür Materialumschlag

Advantages of Aspirator 3: • Approved medical device • Easy handling by electrical pedal • Long durability • High reliability • Very silent • Constant control of negative pressure • Safe by overflow protection • Dimensions : 408 x 130 x 250 mm (w x d x h) • Weight : 7.6 kg • Power supply : 230 V AC, 50/60 Hz or 115 V AC, 50/60 Hz, 85 VA • Negative pressure : 0 - 500 mmHg ≙ 0 – 666 mbar • Volume of overflow vessel : 100 ml • Connection for aspiration tubing : Ø 2 to 4 mm • Connection for potential compensation : Yes • Hotplate (optional) : Temperature range: 30 °C - 45 °C • Accuracy: ± 0.2 °C • Temperature distribution: ± 0.5 °C • Heating up time: <10 min. • According to Directive 93/42/EEC : Class IIa • EN 10079 conform : high vacuum, low flow • Safety class : I • Device type : BF
