Pendelschlagwerk für Kunststoff HIT

IZODfür Charpy Testsfür IZOD Tests

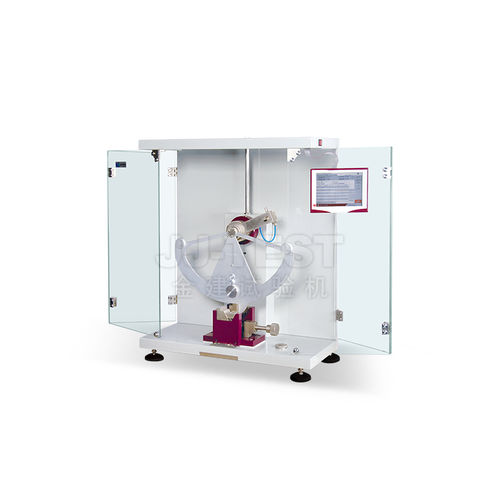

Pendulum Impact Tester Overview The impact tester is an instrument used to conduct impact test on thermoplastic materials in order to determine their impact fragility characteristic under specified stress conditions. There are three methods often used: Charpy, Izod and Tensile impact. These methods used differ in the way the specimen clamped and the impact energy & speed required. Features 1.Touch screen control and display, with the functions of automatic calibration of energy losses. High precision, perfect stability and easy operation enable the tester to gain CE certificate and be sold all around the world. 2.USB stick can be inserted and transferred test results to PC. 3.Automatic calculation of impact energy and impact strength, also test results can be displayed and be printed out. 4.JJSM-13 Smart dimension measuring device is introduced to pendulum impact tester. Width, thickness as well as residual thickness of test sample can be exported to touch screen directly. Test result will be calculated automatically. (JJSM-13Need to purchase separately) Standard ISO179,ISO180, ASTMD256, ISO8256, ISO9854 and the equivalent.
