Niveauanzeiger für Flüssigkeiten FMIPL-FBLI-100

MagnetSchwimmermit elektromechanischem Lot-System

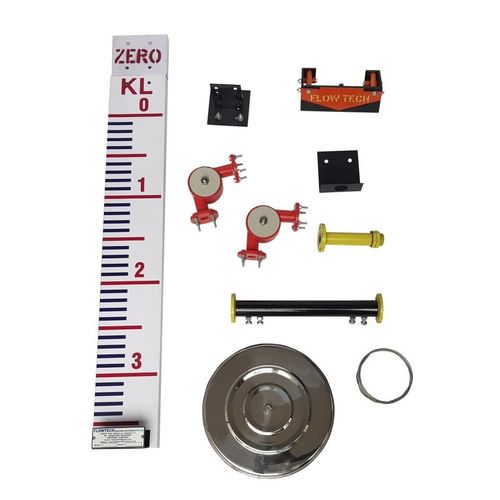

FEATURES: A large self centred float follows the liquid level in this gauge. A rope fitted with a float moves over a pair of dust free pulleys. Level is indicated by a pointer which moves on a 150 mm width aluminium powder coated scale. Mainly used for storage tanks of Oil, Fire / DM water Alkalies, Acids furnace Oils, Lube Oil, Vegetable Oil, Molasses, Glucose etc. Vapours seals (Magnetic) for special applications like HCl,N2 purged tank, diluted alkalies, dilute HNO3,NH3 Methanol,Banzene,Toluene, IPA etc. In vapour seal there is no sealing liquids so we get absolute vapour tightness. Float Board Level Indicator Manufacturers , Supplier , Exporter , Trader , Dealer: “FLOWTECH” offer Float & Board Type Tank Level gauge (indicator) suitable for large non – pressurized liquid storage tanks / vessels. This gauge is also applicable to cone roof, float roof, floating roof, under grand tanks etc. The Specific Gravity of the fluid should be more than 0.6(Free Flow) This level gauge wonks on the principle of buoyancy. The whole unit consist of two types of parts. Viz wetted parts & Non-wetted parts. Wetted parts are those which come in contact with the liquid e.g. Float anchor plan float guide wire etc while. Non-etted parts are the one which do not come in contact with the liquid e.g. Float wire
