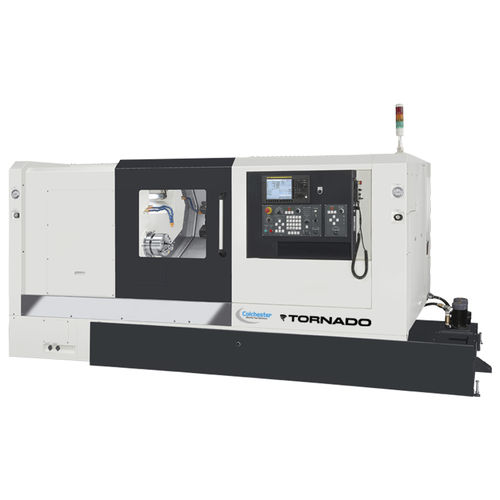

CNC-Drehzentrum SL series

2-AchsA2-6A2-8

530 mm, 600 mm, 650 mm, 750 mm
(20,87 in, 23,62 in, 25,59 in, 29,53 in)

2.500 rpm, 3.500 rpm, 4.500 rpm, 5.000 rpm
(15.707,963 rad.min-1, 21.991,149 rad.min-1, 28.274,334 rad.min-1, 31.415,927 rad.min-1)

350 mm, 400 mm, 450 mm, 550 mm
(14 in, 16 in, 18 in, 22 in)

400 mm, 600 mm, 950 mm, 1.000 mm, 1.500 mm
(16 in, 24 in, 37 in, 39 in, 59 in)

52 mm, 65 mm, 78 mm, 103 mm
(2 in, 3 in, 3 in, 4 in)

30.000 mm/min, 36.000 mm/min
(20 in/s, 24 in/s)

1.181.000 mm/min, 1.417.000 mm/min
(775 in/s, 930 in/s)

11 kW, 15 kW, 18,5 kW, 37 kW
(15 hp, 20,4 hp, 25,2 hp, 50,3 hp)

202 Nm, 305 Nm, 727 Nm, 2.944 Nm
(149 ft.lb, 225 ft.lb, 536 ft.lb, 2.171 ft.lb)

160 l, 240 l, 270 l, 280 l
(42 gal, 63 gal, 71 gal, 74 gal)

1.500 mm, 1.745 mm, 1.844 mm, 2.165 mm
(59 in, 69 in, 73 in, 85 in)

2.450 mm, 2.930 mm, 3.050 mm, 3.900 mm
(96 in, 115 in, 120 in, 154 in)

Min: 4.000 kg
(8.818 lb)

Max: 7.700 kg
(16.976 lb)
