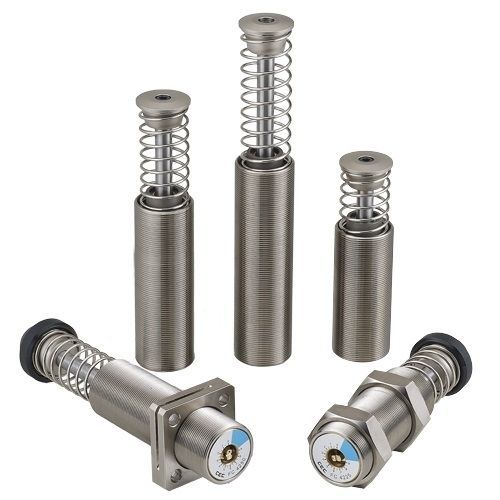

Stoßdämpfer FC 42 series

Schwingunghydraulisch

In order to save costs, factories typically use solid buffers such as polyurethane and rubber. However, these can result in noise and transient impacts. Choosing the right shock absorber can reduce impact vibrations and noise, improve efficiency, and extend the lifespan of machinery, thereby enhancing reliability and production yield. Additionally, noise reduction implies environmental friendliness. The function of CEC shock absorbers is to convert the kinetic energy of moving objects into heat, dissipating it into the atmosphere. They can smoothly and quietly stop the movement of objects before severe impacts occur. The FC series is designed with an adjustable structure. When encountered with different loading, and different impact speeds, users can adjust the adjustment knob to modify the most appropriate scale, and perfectly absorb the energy generated by the objects. Compared to the SC series, the FC series has a higher energy absorption capacity and a larger range of applications. Load capacity: 60-160 N Thread : M42 * Pitch 1.5mm Stroke: 25,50,75 mm Thread length: 166mm, 217mm and 270.5mm
