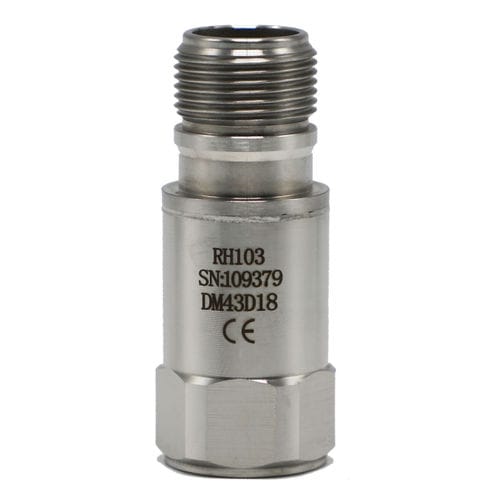

ICP-Beschleunigungssensor RH103

IEPEfür raue UmgebungenIP68

 - Built-in IEPE circuit, isolation output, constant current source power supply.  - Laser seal welded.  - Using military connector, can be used for on-line monitoring in harsh industrial sites Parameters - Index Basic parameters Sensitivity - 100mv/g（±10%） Range - ±80g peak Linearity - ≤1% Frequency Response (±10%) - 0.7～10000Hz Frequency Response(±3 dB) - 0.4～15000Hz Resonance Frequency - About 30kHz Transverse Sensitivity - ≤5% Certificate - CE Protection Grade - IP68 Identification - Ex ia IIC T4 Ga Electrical character Bias Voltage - 10.5-13.5VDC typical：12VDC Constant Current - 2-20mA typical：4mA Excitation Voltage - 18-30VDC typical：24VDC Settling time - ≤2S Electrical noise power spectral density - 10Hz 14μg/√Hz 100Hz 5μg/√Hz 1000Hz 3μg/√Hz Output Impedance - ＜100Ω Grounding - Housing isolation, internal shielding Structural features Maximal Shock Level - 5000g Mounting Thread - M6×1 Weight - 61g Dimension - Diameter × Height：18.5×47.7（mm） Seal Method - Laser Welding Protection Grade - IP68 Casting Material - 316L stainless steel Output - Top output, 2pins Mil-C-5015 Working Temperature - -40～+120℃ Mount Torque - About 2.7～6.8N.m (M6 thread) Certificate - CE Explosion proof (Not standard, optional） Identification - Ex ia IIC T4 Ga
